Non-membranous organelles and membranous organelles in the cytoplasm

The cytoplasm

It is a fluid – like substance composed mainly of water and some organic and inorganic substances , It is between the cell membrane and nucleus , It contains a group of various structures known as the cell organelles which are divided into Non-membranous organelles and membranous organelles .

The cytoplasm contains a network of filaments and microtubules called cytoskeleton which acquires the cell a support for helping it in maintaining its shape and form , it works as passages to transport different substances from a place to another inside the cell .

Non-membranous organelles are not surrounded by a membrane such as Ribosomes and Centrosome , Membranous organelles are surrounded by a membrane such as Endoplasmic reticulum , Golgi body , Lysosomes , Mitochondria , Vacuoles and plastids .

Non-membranous organelles


It is round-shaped organelles , Its function is synthesizing protein in the cell , Some of them present free in cytoplasm ( single or in clusters ) where they produce and release protein directly into cytoplasm which the cell uses it in its vital processes as growth , regeneration and others .

Most of them are attached to outer surface of rough endoplasmic reticulum where they produce proteins ( as enzymes ) that transported by endoplasmic reticulum to outside of  the cell after making changes to it in the Golgi body .


It is located near the nucleus in the animal cells ( except the nerve cells ) and in some fungi cells , It is not present in cells of plants , algae and most fungi , where these cells contain a region of cytoplasm performing the same function instead .

It consists of two tiny particles called centrioles which are named the Centrosome , Each centriole consists of 9 groups of microtubules arranged in triples in a cylinderical shape .

It plays an important role in formation of the flagella and cilia & the cell division , where the spindle filaments extend between the two centrioles present at each pole of the cell , So , these centrioles withdraw the chromosomes towards the poles of cell .

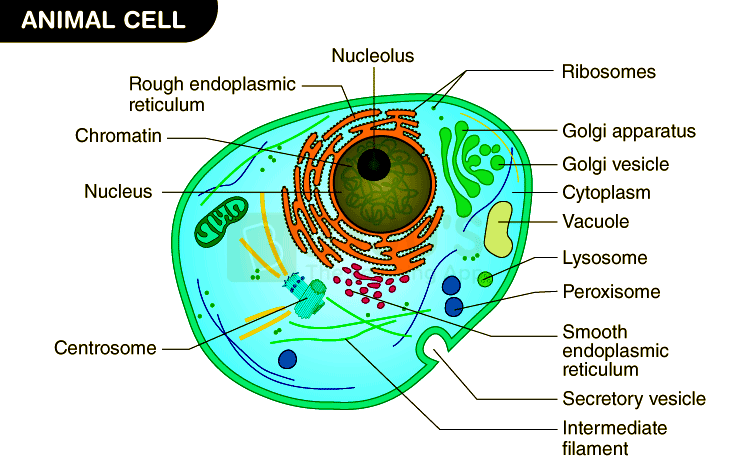

Animal cell

Animal cell

Membranous organelles

Endoplasmic reticulum

It is a network of membranous canaliculi, It extends through all parts of cytoplasm attached to the nuclear envelope and cell membrane, It forms an internal transferring system that benefits in transferring the substances from a part to another inside the cell , It transfers substances between the nucleus and the cytoplasm .

There are two types of endoplasmic reticulum , which are Rough endoplasmic reticulum and Smooth endoplasmic reticulum .

Rough endoplasmic reticulum is characterized by presence of a large number of ribosomes on its surfaces , Its functions are Synthesizing proteins in the cell , Making changes on proteins produced by ribosomes , making new membranes in the cell .

Rough endoplasmic reticulum abundance : Its presence increases in the cells of stomach lining and endocrine glands where these cells are responsible for secretion of enzymes and hormones .

Smooth endoplasmic reticulum does have Ribosomes , Its functions are Synthesizing lipids in the cell , Transforming glucose into glycogen , Modifying the nature of some toxic chemicals to reduce their toxicity.

Smooth endoplasmic reticulum abundance : Its presence increases in hepatic cells , where : Glucose sugar is converted into glycogen that stored in liver , Some toxic compounds are converted into less toxic ones .

Golgi body ( Golgi apparatus )

It is a group of flat membranous round-ended sacs , The number of Golgi bodies in the cell differs according to the cell’s secretion activity, It performs its function in several stages as the following :

It receives the substances that are secreted by endoplasmic reticulum through a group of transporting vesicles and it classifies and modifies these substances .

It distributes these substances into the places where they are used in the cell, or it may pack them inside secreting vesicles ( lysosomes ) that move forward to the cell membrane where the cell expels them to outside as secretory products.

Origin of word Golgi apparatus : Golgi apparatus was named for its discoverer , the Italian scientist Camillo Golgi  who described it for the first time in 1898 , Golgi apparatus is also known as Golgi complex and it is also known as dictyosomes in plants and algae .


Description : Small , rounded , membranous vesicles formed by Golgi bodies and contain a group of digestive enzymes .

Functions : Getting rid of worn and senile cells which no longer have benefits to the cell , Digesting the large molecules of nutrients engulfed by the cell and changing them into structurally simplest substances that the cell can benefit from them .

Example : White blood cells use the digestive enzymes present inside the lysosomes to digest and destroy the pathogens ( microbes ) which invade the cell ,The cell is not affected by enzymes of lysosomes because these enzymes are surrounded by a membrane isolating them from the cell components .


They are sac-like membranous organelles, Their wall consists of two membranes from the inner membrane a group of folds known as cristae extend into matrix, They are considered the main storehouse for the respiratory enzymes in the cell .

They are the storehouse for ATP ( adenosine triphosphate ) compound that is necessary to store energy resulting from cellular respiration due to oxidation of nutrients ( especially glucose ) and the cell can extract the energy from ATP compound once more, The cristae of mitochondrion works on increasing the surface on which the chemical reactions producing the energy take place .


They are membranous sacs similar to bubbles filled with a fluid, They are small in size and large in number in animal cells , They are collected in one big vacuole or more in plant cells .

Functions : Storing the water , nutrients and wastes of the cell until it gets rid of such wastes.


They are various shaped membranous organelles, They present in plant cells only, There are three types of plastids that differ from each other depending upon the type of pigment present in each type of them .

The colours of the plant cell are related to the chromoplasts as in the petals of the flowers or to the presence of some coloured pigments in cytoplasm as in beet or roselle .

Types of plastids

Leucoplasts ( white plastids )

They are present in the roots of sweet potatoes , stems of potatoes and internal leaves of cabbage , They do not contain any type of pigments , They work as centres for storing starch .

Chromoplasts ( coloured plastids )

They are present extensively in petals of flowers , fruits and roots of some plants such as rapeseed , They contain the carotenoids pigments which their colours varies between red , yellow and orange , They give the plant or its parts that contain them its characteristic own colour .

Chloroplasts ( green plastids )

They are present in the leaves and stems of green plants , They contain the green chlorophy II pigment , Photosynthesis occurs in them where chlorophy II pigment transforms the light energy of the sun into the chemical energy that stored in the chemical bonds of glucose sugar .

Structure of the chloroplast

It is composed of an envelope is a double membrane ( outer and inner ), a matrix called stroma , Complex layers of disk-shaped structures known as the thylakoids , which each group of them forms what is known as granum , Grana are found inside the stroma .

Depending on the cell structure , all the living cells are divided into two groups : prokaryotic cells such as bacteria and eukaryotic cells such as animals , plants , fungi and protista .

The important difference between eukaryotic cells and prokaryotic cells is the first contain a definite-shaped nucleus and the second do not contain a definite-shaped nucleus .

In order to the components of the specimens be more clearer , it can be possible by adding stains to them or changing the contrast in microscope , The green colour of Elodea leaf is due to the presence of chloroplasts that contain green chlorophyll pigment inside this leaf .

Plant cell and animal cells

Plant and animal cells are similar in presence of some cellular organelles and there are some other organelles characteristic for each type of these types of cells, The structures restricted on animal cell can not be seen by the light microscope as : centrosome .
